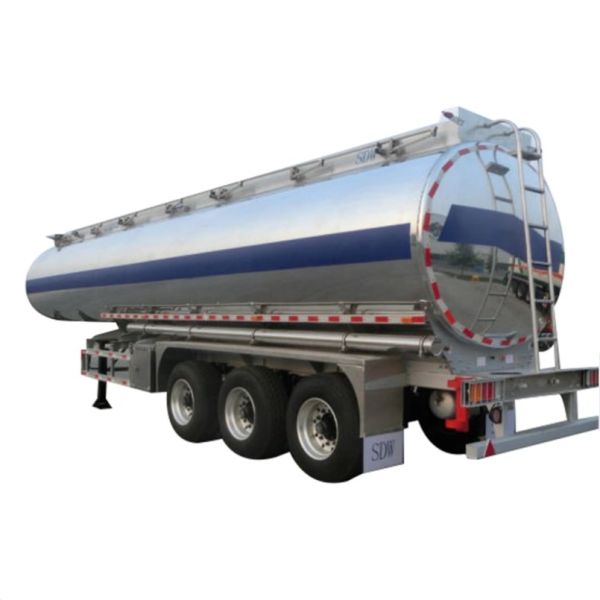

Factory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi Trailer

Hubei Zhongzhong Huawei import and Export Co., Ltd
Contact Now

Factory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi Trailer

Use : Truck Trailer

Type : Semi-Trailer

Material : Steel

Size : 12000*2500*3650

Max Payload : 45000kg

Place of Origin : Hubei, China

Brand Name : SINOTRUK

Load weight : 40000-60000kg

Color : Customized Color

Landing Gear : Jost Dual-speed Landing Gear

Tyre : 12R22.5

Main Beam : 14/8/12mm Height:500mm

Axle : 13/16 Ton Fuwa/BPW/CIMC

Brake System : WABCO Valve

Suspension System : Mechanical Spring + Air Suspension System

Axles No : 2 / 3 / 4 Axles

Function : Transport Fuel

Certification : ce

OE NO. : 1247

Packaging Details : suitable by sea freight

Port : China Main Port

Supply Ability : 800 Unit/Units per Month

Price : $16,000.00 - $22,000.00/Units

Contact Now

Packaging & Shipping

SINOTRUK Fuel Tank Semi Trailer on HOT sale

Specifications
(1) Axle:2 axle/3 axle/4 axles for choose.
(2) Suspension:Heavy Duty mechanical suspension or Air suspension for choose.
(3) Axle Brand: BPW/ FUWA/HJ/L1 Brand 12 ton/13ton for choose
(4) Trailer Type: Flatbed/Lowbed/Storehouse/Sidewall/Tipping Dump Full trailer for choose
(5) Certification: ISO9001 CCC,SGS

Factory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi TrailerFactory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi Trailer

Technical Parameters

SINOTRUK tri-axles Fuel Tank Semi Trailer for sample

Tare Weight

7000kg
Overall dimensions (L x W ) 12000*2500*3650 mm
Volume 42000L, with 6 compartment
Axle 3 axles of Germany style 13 ton
Brand Name: BPW/ FUWA/HJ/L1
Suspension mechanical suspension or Air suspension
King Pin JOST brand 2” Bolt-in King Pin
Tyre 12R22.5 tire , 13 pieces include one spare tire
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 9.25-22.5 wheel rim 13 pieces
Braking System WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Accessories One standard tool box
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Factory Introduction

Factory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi TrailerSINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching ,developing and manufacturing of heavy trucks and related key parts.The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks ,special trucks etc. SINOTRUK produced the first Chinese heavy duty truck Huanghe JN150 with payload 8 tons in April 1963. Since then, it ended the history that China can not produce heavy duty trucks and opened a new era for heary duty truck industry .SINOTRUK is also famous for successfully introducing the “STEYR” heavy duty truck project into China . In 2008,SINOTRUK signed an agreement with MAN,the world-famous German truck company,to set up strategic partnership.As the second largest shareholder of SINOTRUK,MAN will introduce its all series products and core technology, including cabin,engine,axle and other parts into Chinese market through SINOTRUK.Through years of research and innovation,SINOTRUK has developed a number of generation products, like Huanghe, STEYR,HOWO and A7.The annual production capacity is over 20,000.00 units all kinds of special trucks and 10,000.00 units trailers. With a tradition over 50 years in engineering industry,Huawin has accumulated rich experienced in manufacturing all kinds of special purpose vehicles and semi trailers.

Factory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi TrailerThe products range from tractor trucks, cargo trucks,crane mounted trucks,garbage trucks, water trucks etc.And the trailer products range from flatbed trailers, tipper trailers ,tank trailers,concrete mixer trailers etc.Huawin is customer oriented and manages its business processes with the dynamics, efficiency and reliability to reach high customer satisfaction ratings.The combination of modern technology and human oriental assures a strong and competitive position in bothdomestic and international market.Huawin has set up 27 service centers throughout China to provide readyservice for its customers.Complete coverage of sales service greatly reduces the distance between Huawin and its customers.In overseas market,Huawin has already successfully established well-managed after-sales service centers with our local partners. Now ,Huawin is planning to set up more sales office and after services in other countries,to offer customers more and better sales services.Any time customers want,Huawin will be there with then.

Packing&Shipping

Factory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi Trailer

Factory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi Trailer

Here we can help to arrange the shipping depends on your destination, and we wil give a much cheaper way to transport the truck you purchased to your country. We really have a good and mature shipping team and cooperaters. So don't worry about the shiping, we can solve this problem !

Factory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi Trailer

Oversea Branch

Factory Direct Supply Saso Standard Aluminum 42000 liters Fuel Tank Semi Trailer

FAQ1

1,What are our advantages compared with other factory/company ?

Competitive Price--Huawin is a key branch factory of SINOTRUK group,over 50 years manufacting history, factory price and

quality is guranteed.

Quick Response--Our service team is consisted of a group of diligent and enterprising people, working 24/7 to respond

clients'inquiries and questions,oversea branch office helps local customers to solve problems in time, almost all problems can be

answered in 12 hours.
Quality Control--Professional engineers design, professional production line,spare parts have passed CCC & ISO.
2,Which payment terms can we accept ?
Usually we accept T/T or L/C, sometimes O/A for old customers
On T/T Trm--30% deposit is required, and 70% balance shall be settled before shippment or against the copy of original B/L.
On L/C Trm---100% irevocable L/C without "soft clauses" can be accepted,30% T/T deposit is required, 70% balance by LC at

sight, or 70% usance LC can be accepted for old cumstomers.
On 0/A Trm- -only for customers who has cooperated with us for over 8 years
3,Which incoterms terms can we work ?
Huawin is a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we usually work on FB, CFR, CIF
4,What logistic can we use for shipping ?
We can ship trucks by RO-RO or bulk vessel.
For 90% of our shipment, we will go by sea, to all main contients such as Africa,Middle East, Africa, Oceania, South Asia,

South America, either by container or RO-RO or bulk vessel
For neighborhood countries of China, we can ship trucks by road or railway.
For light spare parts in urgent need, we can ship it by international express service such as DHL, TNT, UPS or Fedex.
