SINOTRUK HOWO 8x4 fire fighting truck

Name: SINOTRUK HOWO 8x4 fire fighting truck
Brand: HOWO
Price: 45 USD

China SINOTRUK HOWO 8x4 fire fighting truck wholesale

Drive Wheel : 8x4

Type : RESCUe

Transmission Type : Manual

Condition : New

Horsepower : 251 - 350hp

Tank Capacity : > 10000L

Emission Standard : Euro 2

Fuel Type : Diesel

Max. Work Height : 60m

Size : 9600*2500*3500mm

Place of Origin : Hubei, China

Brand Name : HOWO

Product Name : Fire Fighting Truck Water Pump

Chassis brand : Sinotruk HOWO

Color : Red

Drive type : LHD RHD

Tank Volume : 10CBM WATER 2CBM FOAM

Wheelbase : 4300mm

Model : Fire Truck Specifications

Application : Municipal Fire Truck Sprinkler Truck

Item : Fire Fighting Water Truck

Max Speed : 95 Km/h

Packaging Details : Nude package with Wax
Shipped by Container or RORO vessel by SEA

Port : China main port

Supply Ability : 100000 Piece/Pieces per Year

Price : $45,000.00 - $70,000.00/Units

Contact Now

Product Description

Specification

Cabin	Driving type 6x4 Double Row Cab with Air condition
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	10000×2500×3600
	Wheel base (mm)	4325+1350
	Wheel track (front/rear) (mm)	2022/1830/1830
Weight in KGS	Tare Weight	14300
	Payload	18000
	Front axles loading capacity	1x7000
	Rear axles loading capacity	2x13000
Max. driving speed（km/h）			90
Engine	Brand	SINOTRUK
	Model	WD615.87
	Type	4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled
	Horse Power（HP)	290 HP
	Emission standard	Euro Ⅱ
Gearbox	HW13710, 10 Forwards gear & 2 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)	400 liters Aluminium oil tank
Tire	12R22.5 tubeless tyre,11 pcs including one spare tire
Tank Capacity (L)	Water: 10,000
	Foam: 2,000
Fire Pump	Model			CB20.10/30.60
	Flow			60L/s at Low Pressure 1.0 MPa
				30L/s at Middle Pressure 2.0 Mpa
Fire Monitor	Model			PL48
	Pressure			1.0～1.2MPa
	Flow			48L/S
	Range			Water≥60 m
				Foam≥55 m
	Rotation angle			360° Horizontal
				-30°～80° Pitch Angle

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting. We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer etc. In 1983, SINOTRUK successfully introduced STEYR heavy duty truck project, in 2009, SINOTRUK signed an agreement with MAN from Germany, MAN becomes the second largest shareholder of SINOTRUK and is introducing its cabin, engine, axle and other parts into China. We, SINOTRUK Hubei Huawin is one of SINOTRUK factory, professional in producing different special purpose trucks.

FAQ

FAQ 1. MOQ: 1 unit 2. Optional payment terms: T/T or L/C T/T: 30% deposit by T/T, 70% balance should be paid before shippment. L/C: 30% payment advance, 70% L/C at sight. 3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA. 4. Delivery time: Within15 workdays after receiving 30% deposit of T/T Warranty 1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first. 2. Other spare parts could be supplied by OEM at cost prices. 3. Regularly callback to know the vehicle's working status. 4. The overseas engineers are always ready to deal with unexpected needs.

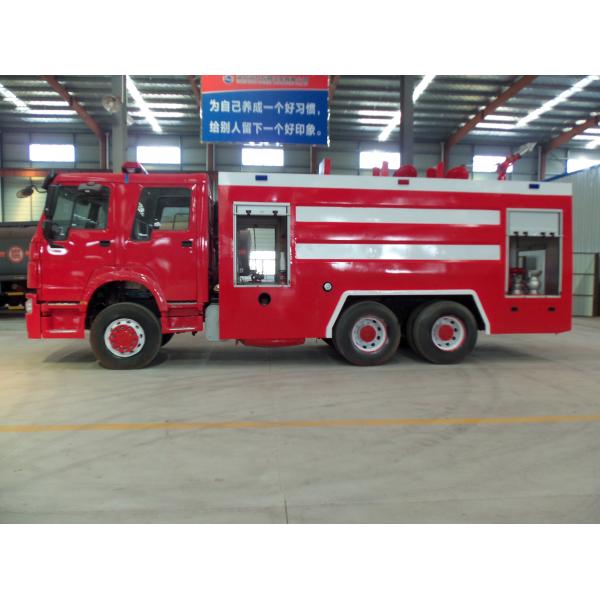

SINOTRUK HOWO 8x4 fire fighting truck Images
