SINOTRUK HOWO 6X4 Fire Truck
(There is also 4x4, 8x8, cargo truck/ tractor truck/ tanker truck etc)
Trucks Features :
1. The truck can work under a temperature from 41C to + 46C day and night, elevation up to 5000m high. The options for the truck are ABS system, concentrated lubricating system, hydraulic windlass, etc.
2. The cab of HOWO series off-road vehicle is four-point suspended and installed the domestic originally created horizontal stabilizer for cab as well as strong protector frame to prevent front striking Thus the cab has been thought of the safest domestic cab by specialists.
3. Equipped with such advanced parts as CNHTC WD615 series Euro-l/ Euro lll turbine turbocharged inter-cooled diesel engines, power ranging from 266hp to 300hp, CNHTC transmission, with FULLER transmission for alternative,ZQC1200 transfer case, strengthened drive axle, WABCO brake system and exported ZF8098 traversing mechanism.

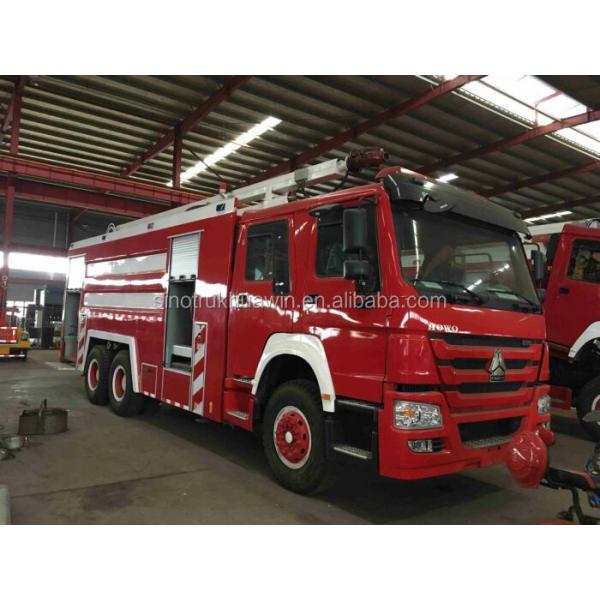

Details photos for reference
Specifications of HOWO 6X4 Fire Truck
| Item | HOWO Fire Truck | Chassis Model | ZZ1257N4341W |
| Vehicle parameters | GVW(kg) | 25000 | Overall Dimension (mm) | 10335 x 2500 x 3710mm |
| Rated load (kg) | 12000 | Steering Wheel | LHD |
| Curb weight (kg) | 13250 | Wheelbase (mm) | 4325+1350 |
| Driving Type | 6*4 |
| Engine parameters | Model | WD615.69 | Emission Standard | Diesel, Euro 2 |
| Horse Power(hp) | 336 | Emissions(ml) | 9726 |
| 4 stroke,6-cylinders in line, water cooling |
| Gear box | 10 forward and 2 reverse |
| Performance Parameter | Max Speed (km/h) | 90 | Wheel Tread(mm) | Front Axle | 2022 |
| Cab Seat | 2+4 | Rear Axle | 1830 |
| Leaf Spring | 10/12 | Suspension (mm) | Front Suspension | 1500 |
| Tire No. | 10+1 | Rear Suspension | 2625 |
| Tire Specification | 295/80R22.5 | Driving Angle(°) | Approach Angle | 14 |
| Axle No. | 3 | Departure Angle | 11 |
| Special Function | Capacity | Water tank 10000L, Foam Tank 2000L |
| Fire Pump | 1. CB10/60, 60L/S,pressure:1.0MPa 2.Suction time≤ 35s(7m suction depth )centrifugal pump |
| Fire Monitor | 1.PL48, 48L/S, pressure: 1.0Mpa 2. Fire nozzle range: water≥65m,Foam≥55m |
| Performance Description | Double row cab with 4 doors; Exposed tank, material is carbon steel Q235A,with thickness 4 mm; Truck body with aluminum alloy rolling door; PTO control indicator installed in cab, also with 100W siren, LED alarm lamp, sign light, lighting switch, rear lighting and etc. See the below equipment table |
Shipment by different vessels
Our Advantages
1) Favorable price: Factory price, very competitive in the market. We, SINOTRUK Hubei Huawin is SINOTRUK branch factory.
2) In time Warranty: One year or 100,000km for on road trucks as tractor truck or 6 months or 60,000km for off road trucks as dump truck, which comes to the first for the engine, gear box, and axles. We have offices in Tanzania, Zambia and Philippines to provide warranty service, and we have distributors in different countries all over the world to assist.
3) In time After-sales: We have set up over 240 spare parts centers and service outlets all over 80 countries, professional after-sales team solve your after sales problem within 3 working days or 5 working days, and all spare parts are available for you.
4) Experienced sales team and logistics team: Experienced sales team are at your service all the time and offer excellent service, professional logistics team work with international shipping company such as MSK&Hyundai to ship your trucks safely and cost-efficiently.
Company bref introduction:
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the No. 1 for exporting, specialized in the researching, developing and manufacturing of heavy trucks and related key parts.
Now SINOTRUK has 6 truck production factories, 2 engine factories, 2 gearbox factories, 1 axle factory, and cooperated with other international company (STEYR, Germany MAN). MAN introduce its all series products and core technology through SINOTRUK.
WE, SINOTRUK HUAWIN, is SINOTRUK branch factory, located in Hubei Province, professional in producing different special vehicles, with annual capacity is over 20 000units of all kinds special trucks.
SINOTRUK includes: cargo truck, tractor truck, dump truck, concrete mixer, tanker truck, special purpose truck, garbage truck, tank truck, crane truck, flat bed semi trailer etc.
